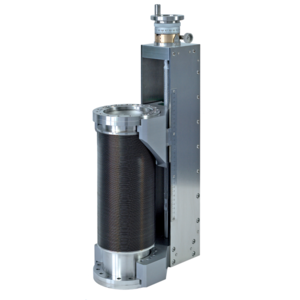

Z-Axis Precision Manipulator - Product

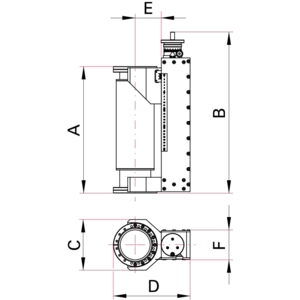

Z-Axis Precision Manipulator - Dimensions

Product
Dimensions

Z-Axis Precision Manipulator

Product description

Recirculating ball bearing guides and recirculating ball screw drive
Zero backlash and no slip-stick effect
Guide and drive are wear-free and maintenance-free
Extremely stable design concept minimizes position offset due to pressure changes
Fixing brake prevents independent movement
Connection flange with through holes, traversable flange with threaded holes
Adjustable zero set point
Inner diameter: DN 40: 38 mm | DN 63: 65 mm | DN 100: 102 mm

Subcategories

Z-Axis Precision Manipulator

Die Filterung ergab Treffer

Z-Axis Precision Manipulator

Technical Data

Resolution: 5 µm
Bakeout temperature max.: ≤ 230 °C
Operating temperature: -15 – 80 °C
Tightness: < 1 · 10^-11 Pa m³/s
Pressure range: 1E-10 hPa – to ambient pressure
Mounting orientation: Arbitrary
Material: Stainless steel (bellows: 316L, flange and tube 304L, housing 304)
Service life: 10000 cycles
Pitch of ball screw drive: 2 mm/Rotation
Repeatable precision: 5 µm

€7,250.00

€7,540.00

€7,870.00

€8,330.00

€8,810.00

€7,870.00

€8,170.00

€8,570.00

€9,720.00

€10,950.00

€9,410.00

€9,870.00

€10,350.00

€11,100.00

€11,900.00

Z-Axis Precision Manipulator

Technical Data

Resolution: 5 µm
Bakeout temperature max.: ≤ 230 °C
Operating temperature: -15 – 80 °C
Tightness: < 1 · 10^-11 Pa m³/s
Pressure range: 1E-10 hPa – to ambient pressure
Mounting orientation: Arbitrary
Material: Stainless steel (bellows: 316L, flange and tube 304L, housing 304)
Service life: 10000 cycles
Pitch of ball screw drive: 2 mm/Rotation
Repeatable precision: 5 µm

Connection flange	A	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	Stroke [mm]	Order number	Delivery time	Your price	Amount
DN 40 CF	150 – 250 mm	370 mm	84 mm	175 mm	50 mm	82 mm	100 mm	420MZA040-100	1-3 days	€7,250.00
DN 40 CF	150 – 300 mm	420 mm	84 mm	175 mm	50 mm	82 mm	150 mm	420MZA040-150	On request	€7,540.00
DN 40 CF	165 – 365 mm	485 mm	84 mm	175 mm	50 mm	82 mm	200 mm	420MZA040-200	On request	€7,870.00
DN 40 CF	190 – 490 mm	610 mm	84 mm	175 mm	50 mm	82 mm	300 mm	420MZA040-300	On request	€8,330.00
DN 40 CF	220 – 620 mm	740 mm	84 mm	175 mm	50 mm	82 mm	400 mm	420MZA040-400	On request	€8,810.00
DN 63 CF	150 – 250 mm	370 mm	128 mm	217 mm	70 mm	82 mm	100 mm	420MZA063-100	On request	€7,870.00
DN 63 CF	150 – 300 mm	420 mm	128 mm	217 mm	70 mm	82 mm	150 mm	420MZA063-150	On request	€8,170.00
DN 63 CF	165 – 365 mm	485 mm	128 mm	217 mm	70 mm	82 mm	200 mm	420MZA063-200	On request	€8,570.00
DN 63 CF	190 – 490 mm	610 mm	128 mm	217 mm	70 mm	82 mm	300 mm	420MZA063-300	On request	€9,720.00
DN 63 CF	220 – 620 mm	740 mm	128 mm	217 mm	70 mm	82 mm	400 mm	420MZA063-400	On request	€10,950.00
DN 100 CF	190 – 290 mm	410 mm	176 mm	267 mm	91 mm	104 mm	100 mm	420MZA100-100	On request	€9,410.00
DN 100 CF	190 – 340 mm	460 mm	176 mm	267 mm	91 mm	104 mm	150 mm	420MZA100-150	On request	€9,870.00
DN 100 CF	190 – 390 mm	510 mm	176 mm	267 mm	91 mm	104 mm	200 mm	420MZA100-200	On request	€10,350.00
DN 100 CF	190 – 490 mm	610 mm	176 mm	267 mm	91 mm	104 mm	300 mm	420MZA100-300	On request	€11,100.00
DN 100 CF	212 – 612 mm	732 mm	176 mm	267 mm	91 mm	104 mm	400 mm	420MZA100-400	On request	€11,900.00

‹ › ×
