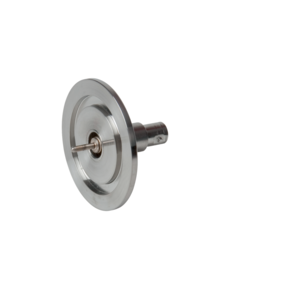

Coaxial Feedthrough, Flanged, BNC
Product description
- Flange material: Stainless steel
- Including atmosphere sided plug (-65 to 165 °C)
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10-4 hPa
Die Filterung ergab Treffer
Technical Data
- Heat up and cool down rate: ≤ 25 K/min
- Tightness: 1 · 10-11 Pa m³/s
- Pressure range: 1E-8 hPa – to ambient pressure
- Feedthrough voltage: 500 V DC
- Input voltage(s): 500 V DC
- Current: 3 A
- Temperature range (vacuum side): -100 – 300 °C
Technical Data
- Heat up and cool down rate: ≤ 25 K/min
- Tightness: 1 · 10-11 Pa m³/s
- Pressure range: 1E-11 hPa – to ambient pressure
- Feedthrough voltage: 500 V DC
- Input voltage(s): 500 V DC
- Current: 3 A
- Temperature range (vacuum side): -100 – 300 °C
Technical Data
- Heat up and cool down rate: ≤ 25 K/min
- Tightness: 1 · 10-11 Pa m³/s
- Pressure range: 1E-8 hPa – to ambient pressure
- Feedthrough voltage: 500 V DC
- Input voltage(s): 500 V DC
- Current: 3 A
- Temperature range (vacuum side): -100 – 300 °C
Technical Data
- Heat up and cool down rate: ≤ 25 K/min
- Tightness: 1 · 10-11 Pa m³/s
- Pressure range: 1E-11 hPa – to ambient pressure
- Feedthrough voltage: 500 V DC
- Input voltage(s): 500 V DC
- Current: 3 A
- Temperature range (vacuum side): -100 – 300 °C
