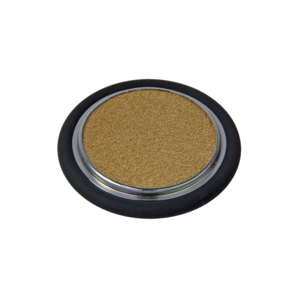

ISO-KF Centering Ring with Filter

Sintered metal filter

Technical Data

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	O-ring material	Order number	Delivery time	Your price	Amount
DN 10 ISO-KF	12	9	3.9	8	10	5	FKM	122ZRS010 Global-No. 2000047824	1-3 days	€56.00
DN 16 ISO-KF	17	13	3.9	8	14	5	FKM	122ZRS016 Global-No. 2000047825	1-3 days	€56.00
DN 25 ISO-KF	26	23	3.9	8	24	5	FKM	122ZRS025 Global-No. 2000047826	1-3 days	€65.00
DN 40 ISO-KF	41	38	3.9	8	39	5	FKM	122ZRS040 Global-No. 2000047827	1-3 days	€87.00
DN 50 ISO-KF	52	48	3.9	8	49	5.33	FKM	122ZRS050 Global-No. 2000047828	1-3 days	€94.00
DN 10 ISO-KF	12	9	3.9	8	10	5	FKM	PF 117 210 -T Global-No. 2000026790	1-3 days	€22.00
DN 16 ISO-KF	17	13	3.9	8	16	5	FKM	PF 117 216 -T Global-No. 2000026791	1-3 days	€22.00
DN 25 ISO-KF	26	22	3.9	8	25	5	FKM	PF 117 225 -T Global-No. 2000026792	1-3 days	€28.00
DN 40 ISO-KF	41	35.5	3.9	8	40	5	FKM	PF 117 240 -T Global-No. 2000026793	1-3 days	€37.00
DN 50 ISO-KF	52	48	3.9	8	50	5	FKM	PF 117 250 -T Global-No. 2000026794	1-3 days	€64.00

Fine Filter

Technical Data

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	O-ring material	Order number	Delivery time	Your price	Amount
DN 25 ISO-KF	26	22	3.9	8	24	5	FKM	PT 120 036 -T Global-No. 2000008073	1-3 days	€43.00
DN 40 ISO-KF	41	35.5	3.9	8	39	5	FKM	PT 120 037 -T Global-No. 2000008074	1-3 days	€68.00
DN 16 ISO-KF	17	13	3.9	8	15	5	FKM	PT 120 132 -T Global-No. 2000008097	1-3 days	€50.00
