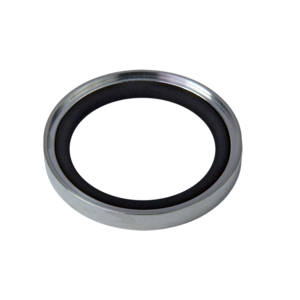

ISO-KF Outer Centering Ring

Aluminum EN AW-6061

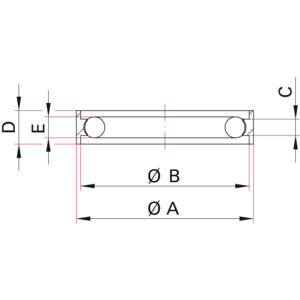

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	O-ring material	Order number	Delivery time	Your price	Amount
DN 16 ISO-KF	32.5	30	3.9	8	5	FKM	112ZAR016	1-3 days	€6.20
DN 25 ISO-KF	42	40	3.9	8	5	FKM	112ZAR025	1-3 days	€7.20
DN 40 ISO-KF	57.5	55	3.9	8	5	FKM	112ZAR040	1-3 days	€8.50
DN 50 ISO-KF	77.5	75	3.9	8	5.33	FKM	112ZAR050	1-3 days	€14.50
DN 16 ISO-KF	32.5	30	3.9	8	5	EPDM	114ZAR016	1-3 days	€6.20
DN 25 ISO-KF	42	40	3.9	8	5	EPDM	114ZAR025	1-3 days	€7.30
DN 40 ISO-KF	57.5	55	3.9	8	5	EPDM	114ZAR040	1-3 days	€8.50
DN 50 ISO-KF	77.5	75	3.9	8	5.33	EPDM	114ZAR050	1-3 days	€13.50

Stainless steel 1.4301/304

Technical Data

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	O-ring material	Order number	Delivery time	Your price	Amount
DN 16 ISO-KF	32.5	30	3.9	8	5	FKM	122ZAR016	1-3 days	€8.70
DN 25 ISO-KF	42	40	3.9	8	5	FKM	122ZAR025	1-3 days	€10.50
DN 40 ISO-KF	57.5	55	3.9	8	5	FKM	122ZAR040	1-3 days	€13.50
DN 50 ISO-KF	77.5	75	3.9	8	5.33	FKM	122ZAR050	1-3 days	€17.50

Polytetrafluoroethylene (PTFE)

Technical Data

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	O-ring material	Order number	Delivery time	Your price	Amount
DN 16 ISO-KF	32.5	30	3.9	8	5	FKM	132ZAR016	1-3 days	€12.50
DN 25 ISO-KF	42	40	3.9	8	5	FKM	132ZAR025	1-3 days	€13.50
DN 40 ISO-KF	57.5	55	3.9	8	5	FKM	132ZAR040	1-3 days	€19.50
DN 50 ISO-KF	77.5	75	3.9	8	5.33	FKM	132ZAR050	1-3 days	€26.00
