High vacuum chamber, horizontal, KHH
- Cylindrical, horizontal body, one side welded dished end
- Stainless steel door with hinges and quick clamps to prestress the FKM-door seal
- Surface: inside and outside glass bead blasted
- Chamber with feet and ring bolts
- Chamber ports available (accessories)
-
820KHH0500-750
- Cylindrical, horizontal body, one side welded dished end
- Stainless steel door with hinges and quick clamps to prestress the FKM-door seal
- Surface: inside and outside glass bead blasted
- Chamber with feet and ring bolts
- Chamber ports available (accessories)
- Delivery time: On request
Global-No. 2000038854
| Connection flange | DN 500 |
|---|---|
| Tightness | < 1 · 10-9 Pa m³/s |
| Pressure range | 1E-7 hPa – to ambient pressure |
| Material | Chamber body and door made from stainless steel 304 (1.4301) |
| Temperature range | 15 – 150 °C |

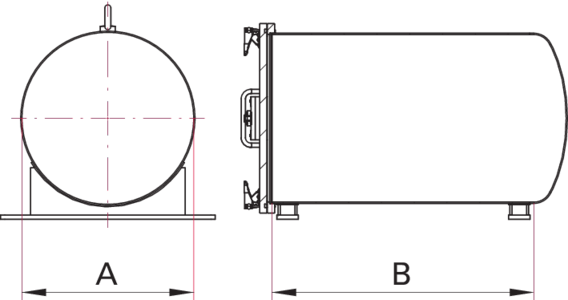

| mm | |
|---|---|
| A | 500 |
| B | 750 |
