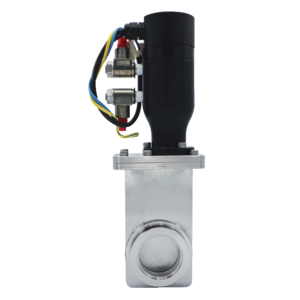

HV gate valve, DN 50 ISO-KF, electro-pneumatic
- Stainless steel valve body with elastomer seals
- Ultra-slim profile can be operated in any orientation
- High conductance due to free clearance
- Wide selection of O-ring materials
- Position indicator switch included
- PI reed switch
-
GVP-S05142
- Stainless steel valve body with elastomer seals
- Ultra-slim profile can be operated in any orientation
- High conductance due to free clearance
- Wide selection of O-ring materials
- Position indicator switch included
- PI reed switch
- Delivery time: On request
Global-No. 2000032819
| Connection flange | DN 50 ISO-KF |
|---|---|
| Actuator | Electro-pneumatic |
| Bakeout temperature: actuator | 60 °C |
| Bakeout temperature: actuator, position indicator | 60 °C |
| Bakeout temperature: actuator, pilot valve | 60 °C |
| Bakeout temperature: housing | 150 °C |
| Bakeout temperature: valve open, under vacuum | 150 °C |
| Bakeout temperature: valve closed | 150 °C |
| Tightness | 1 · 10-9 mbar l/s |
| Seal: Housing | FKM |
| Seal: Valve seat | FKM |
| Differential pressure in opening direction | 1000 hPa |
| Differential pressure in closing direction | 1000 hPa |
| Pressure max. (absolute) | 1000 hPa |
| Pressure min. | 1 · 10-8 hPa |
| Compressed air (overpressure) | 4500 – 6000 hPa |
| Compressed air volume | 62 cm³ |
| Feedthrough | Bellows |
| Input voltage(s) | 24 V DC |
| Housing | 304/1.4301 Stainless steel |
| Weight | 2 kg |
| Power consumption | 4.5 W |
| Conductance value with molecular flow | 317 l/s |
| Opens against differential pressure of | 30 hPa |
| Closing/opening time | 1.5 s/1.5 s |
| Service life | 100000 cycles |
| Position indicator | Included |
| Control valve | Included |
| Type | HV gate valve |
| Valve plate | Stainless steel 1.4301 (AISI 304) |

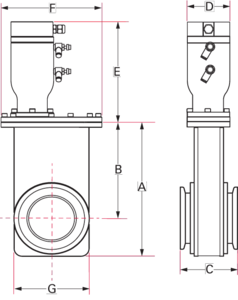

| mm | |
|---|---|
| A | 143 |
| B | 105 |
| C | 50.7 |
| D | 50 |
| E | 134 |
| F | 97 |
| G | 76 |
| H | 74.9 |
