Tube compression fitting, stainless steel 1.4301/304
- Tube can be fed through
- Manual opening and closing
- Double-sealed with FKM O-rings
-
120XQV040-25
- Tube can be fed through
- Manual opening and closing
- Double-sealed with FKM O-rings
- Delivery time: 1-3 days
Global-No. 2000048184
| Connection flange | DN 40 ISO-KF |
|---|---|
| Pressure range | 1 · 10-7 hPa – ambient pressure |
| Materials in contact with media | Stainless steel 1.4301 (AISI 304) |
| O-ring material | FKM |
| Tube external diameter | 25 mm |
| Temperature range | -15 – 130 °C |

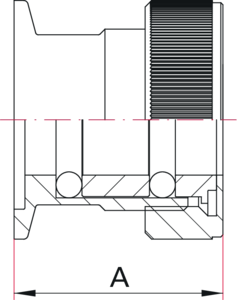

| mm | |
|---|---|
| A | 46 |
