Welding flange, rotatable, stainless steel 304L
- From nominal size DN 300: Article numbers with "-2-" according to ISO 3669: 2020
-
420FAD063-63
- From nominal size DN 300: Article numbers with "-2-" according to ISO 3669: 2020
- Delivery time: 1-3 days
Global-No. 2000041585
| Connection flange | DN 63 CF |
|---|---|
| Number of screws | 8 pcs. |
| Bakeout temperature max. | ≤ 450 °C |
| Rotatable flange per axis | 1 |
| Pressure range | 1E-12 hPa – to ambient pressure |
| Materials in contact with media | Stainless steel (AISI 304L) |
| Tube dimension | 63.5 mm × 1.65 mm |
| Specific Dimensions or Numbers | Pipe Ø 63.5 x 1.65 mm |
| Temperature range | -196 – 300 °C |

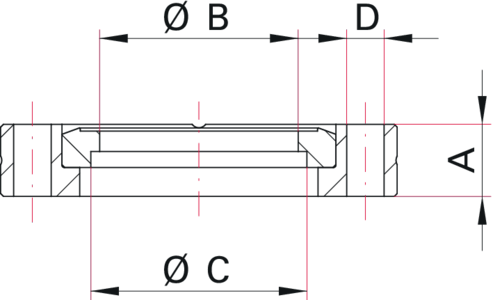

| mm | |
|---|---|
| A | 17.5 |
| B | 60.2 |
| C | 63.8 |
| D | 8.4 |
