Adapter flange, stainless steel 1.4301/304
- Other nominal diameters and dimensions on request
- Reduced nominal width implemented with ISO-F blind hole threads
-
320FLR250-160
- Other nominal diameters and dimensions on request
- Reduced nominal width implemented with ISO-F blind hole threads
- Delivery time: 1-3 days
Global-No. 2000042525
| Connection flange | DN 250 ISO-K / DN 160 ISO-F |
|---|---|
| Number of screws | 8 pcs. |
| Pressure range |
Elastomer seal: 1 · 10-8 hPa – 500 hPa over pressure Metal seal: 1 · 10-9 hPa – 500 hPa over pressure |
| Materials in contact with media | Stainless steel 1.4301 (AISI 304) |
| Nominal diameter reduced | DN 160 ISO-F |
| Temperature range | -196 – 300 °C |

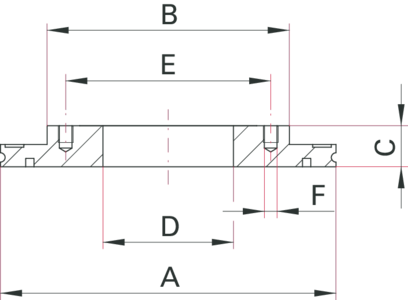

| A | 290 mm |
|---|---|
| B | 225 mm |
| C | 22 mm |
| D | 153 mm |
| E | 200 mm |
| F | M10 |
