Bracket screw, stainless steel 1.4401/316
- Suitable for use with metal and elastomer seals
- For stainless steel bracket screws, we recommend using thread lubricant
- Not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.
-
320BKL630
- Suitable for use with metal and elastomer seals
- For stainless steel bracket screws, we recommend using thread lubricant
- Not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.
- Delivery time: 1-3 days
Global-No. 2000042463
| Connection flange | DN 630 ISO-K |
|---|---|
| Torque | 20 Nm – 26 Nm |
| Materials in contact with media | Stainless steel 1.4404 (AISI 316L) |
| Temperature range | -196 – 300 °C |

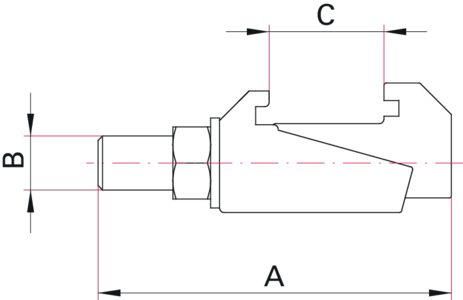

| A | 85 mm |
|---|---|
| B | M12 |
| C | 36 mm |
| C | 44 mm |
