Elbow, 45°, stainless steel 1.4301/304
    120RRB025-45
    Global-No. 2000047898
  • Various stainless steel grades available
  • Delivery time: 1-3 days
€55.00
Connection flange DN 25 ISO-KF
Pressure range Elastomer seal: 1 · 10-8 hPa – 500 hPa over pressure
Metal seal: 1 · 10-9 hPa – 500 hPa over pressure
Materials in contact with media Stainless steel 1.4301 (AISI 304)
Temperature range -196 – 300 °C

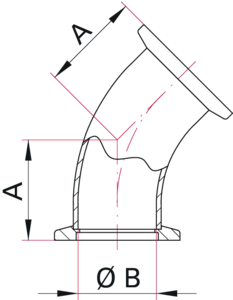

Dimension Image
mm
A 32
B 24
Name Category Language Filesize
Rohrbogen, 45°
Datasheet_120RRB025-45_de.pdf 		Datasheet German 327 kB
Elbow, 45°
Datasheet_120RRB025-45_en.pdf 		Datasheet English 313 kB
3D Step
120RRB025-45.stp 		3D CAD   160 kB
