Elbow, 90°, stainless steel 1.4301/304
    120RRB050-90
    Global-No. 2000047903
  • Various stainless steel grades available
  • Delivery time: 1-3 days
€67.00
Connection flange DN 50 ISO-KF
Pressure range Elastomer seal: 1 · 10-8 hPa – 500 hPa over pressure
Metal seal: 1 · 10-9 hPa – 500 hPa over pressure
Materials in contact with media Stainless steel 1.4301 (AISI 304)
Temperature range -196 – 300 °C

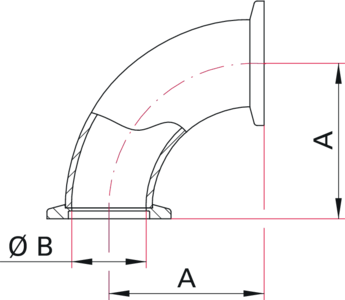

Dimension Image
mm
A 70
B 51
Name Category Language Filesize
Rohrbogen, 90°
Datasheet_120RRB050-90_de.pdf 		Datasheet German 338 kB
Elbow, 90°
Datasheet_120RRB050-90_en.pdf 		Datasheet English 324 kB
3D Step
120RRB050-90.stp 		3D CAD   134 kB
