Welding flange ring, stainless steel 1.4301/304
- Various stainless steel grades available
-
120FAN025-25
- Various stainless steel grades available
- Delivery time: 1-3 days
Global-No. 2000048711
| Connection flange | DN 25 ISO-KF |
|---|---|
| Pressure range |
Elastomer seal: 1 · 10-8 hPa – 1500 hPa over pressure Metal seal: 1 · 10-9 hPa – 1500 hPa over pressure |
| Materials in contact with media | Stainless steel 1.4301 (AISI 304) |
| Tube dimension | 25.4 mm × 1.65 mm |
| Specific Dimensions or Numbers | Pipe 25.4 x 1.65 mm |
| Temperature range | -196 – 300 °C |

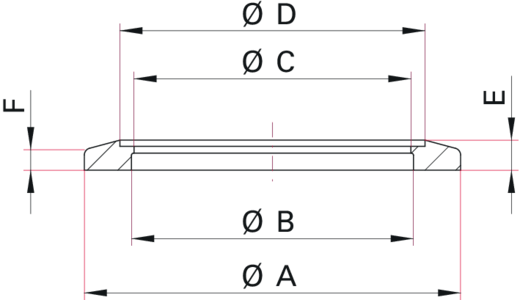

| mm | |
|---|---|
| A | 40 |
| B | 26.2 |
| C | 22.1 |
| D | 25.6 |
| E | 4.93 |
| F | 3 |
