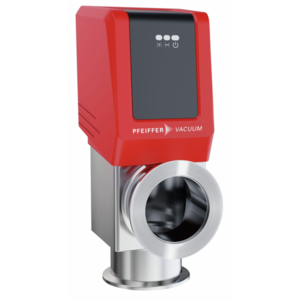

Angle valve, DN 50 ISO-KF
- Electric Actuation; 24V DC
- Eco-friendly, Low power consumption
- Easy integration
- Fast open/close
- High reliability
- With visual position indicator (LED)
- Local mode button
-
EAV-A05150
- Electric Actuation; 24V DC
- Eco-friendly, Low power consumption
- Easy integration
- Fast open/close
- High reliability
- With visual position indicator (LED)
- Local mode button
- Delivery time: 1 week
Global-No. 2000192921
| Connection flange | DN 50 ISO-KF |
|---|---|
| Actuator | Electric n.c. |
| Bakeout temperature: actuator | 50 °C |
| Bakeout temperature: housing | 150 °C |
| Bakeout temperature: valve open, under vacuum | 150 °C |
| Operating pressure min. | 1 · 10-8 hPa |
| Tightness | 1 · 10-9 mbar l/s |
| Seal | FKM |
| Differential pressure in opening direction | 1000 hPa |
| Differential pressure in closing direction | 2000 hPa |
| Pressure max. (absolute) | 2000 hPa |
| Feedthrough | Bellows (Stainless steel) |
| Mounting orientation | Arbitrary |
| Input voltage(s) | 24 V DC |
| Housing | Aluminum |
| Weight | 2 kg |
| Power consumption | 0.48 W |
| Conductance value with molecular flow | 80 l/s |
| Closing/opening time | 570 ms/680 ms |
| Service life | 1000000 cycles |
| Position indicator | Included |
| Position indicator: Load capacity | ≤ 48 V AC / DC / 500 mA |
| Current | 22 mA |
| Temperature range | 0 – 150 °C |
| Type | Angle valve |
| Ambient temperature | 0 – 50 °C |
| Valve plate | Stainless steel (AISI 316) |
| mm | |
|---|---|
| A | 230 |
| B | 177 |
| C | 99 |
| D | 132 |
| E | 72.5 |
